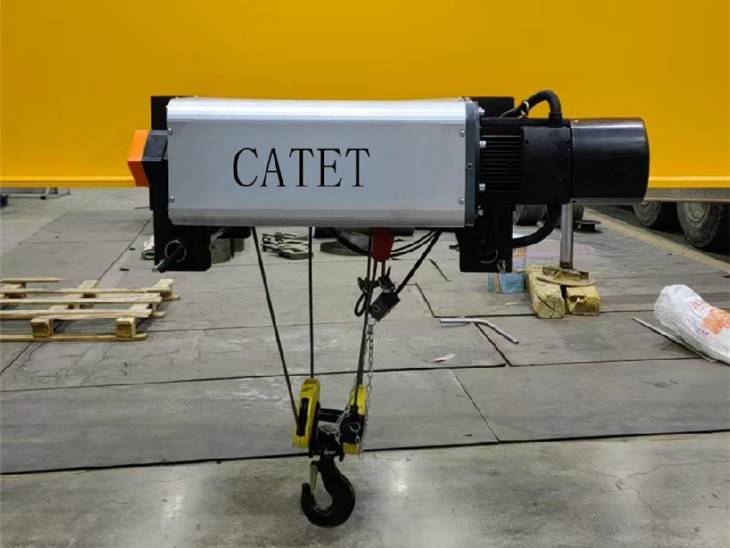

🏗️ 5 Ton European Standard Wire Rope Electric Hoist
The 5-ton European standard wire rope electric hoist is a high-performance lifting device designed in accordance with FEM (Europe) and DIN (Germany) standards. It features a compact structure, light weight, smooth operation, and high precision. This type of hoist is widely used in manufacturing, warehousing, automotive assembly, and other industrial environments where safety and efficiency are key.
✅ Key Features:
Compact & Low Headroom Design: Ideal for maximizing lifting height in limited spaces.
Variable Frequency Drive (VFD): Ensures smooth acceleration/deceleration and precise load control.
Durable Wire Rope System: Equipped with anti-rotation, wear-resistant wire ropes.
Modular Construction: Easy maintenance and replacement of components.
Safety Systems: Includes overload protection, limit switches, emergency stop, and thermal motor protection.
Control Options: Pendant, wireless remote, or integration with crane cabin controls.
| Lifting Capacity | Lifting Height (m) | Work Level | Lifting Speed | Lifting Power | Running Speed | Operating Power | H | C |
|---|---|---|---|---|---|---|---|---|
| 3.2T | 6/9/12/15/18 | M5 | 0~5m/min | 3.0kw | 0~20m/min | 0.64kw | 590mm | 290mm |
| 5T | 6/9/12/15/18 | M5 | 0~5m/min | 4.5kw | 0~20m/min | 0.64kw | 590mm | 290mm |
| 10T | 6/9/12/15/18 | M5 | 0~5m/min | 9kw | 0~20m/min | 0.96kw | 750mm | 300mm |
| 16T | 6/9/12/15/18 | M5 | 0~3.6m/min | 13kw | 0~20m/min | 0.96kw*2 | 1150mm | 200mm |
| 20T | 6/9/12/15/18 | M5 | 0~3.6m/min | 13kw | 0~20m/min | 1.1kw*2 | 1150mm | 200mm |
⚙️ 5ton electric hoist detailed parameter table
| Item | Specification |
|---|---|
| Rated Capacity | 5 ton (5000 kg) |
| Lifting Height | 6m / 9m / 12m / 18m / 24m / 30m (customizable) |
| Lifting Speed | 0.5-5m/min (dual-speed) or VFD adjustable |
| Hoisting Motor Power | 4.5 kW |
| Wire Rope Type | 8×26-2160, Ø9 mm |
| Duty Classification | M5 (FEM 2m) |
| Rope Reeving | 4/1 |
| Power Supply | 220V-690V / 3Ph / 50Hz (customizable) |
| Control Voltage | 36V or 48V |
| Control Method | Pendant / Remote control |
| Protection Grade | IP54 / IP55 |
| Brake System | Electromagnetic / Regenerative braking |
Product packaging and transportation
Product arrival installation phenomenon
Let me know if you'd like a dimension drawing or hoist layout, integration into a double girder trolley, or export version with CE compliance.
