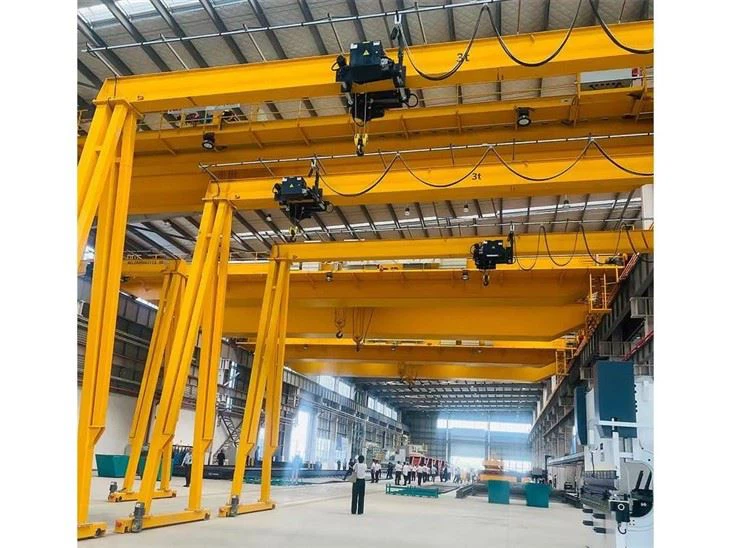

5ton BMH semi-gantry crane

Single Girder semi gantry crane is a crane with one end of the bridge beam directly supported on the track and the other end supported on the track through the outriggers. Its lifting mechanism, trolley running mechanism and bridge structure are basically the same as those of the bridge crane; and the other end, that is, the end with the outriggers, usually runs along the track laid on the ground.

Send Inquiry

Description

Product Introduction

The BMH type 5-ton semi gantry crane is a light-duty lifting solution combining the structure of a gantry crane and a bridge crane. It features a single girder design, with one side running on floor rails and the other side supported by elevated runway beams. This design is ideal for workshops with partial crane runways or limited installation space.

Parameter

Rated Load(Ton)	1~32
Equipment Span(Meter)	6~40
Lifting Height (Meter)	6~20
Work Level	A3
Product Certification	ISO, CE
Design Standard	GB3811

Single Girder semi gantry crane Advantages

■ Compact structure, saving space: one side is ground track, the other side is equipped with I-beam runway, suitable for semi-open or partial factory space.

■ Smooth operation: equipped with variable frequency speed regulation system (optional), soft start and stop, reducing impact and swing.

■ Convenient operation: supports handle control and remote control operation, the operator can flexibly dispatch.

■ Modular design: electric hoist, control system and main beam can be quickly replaced and maintained easily.

■ Customizable design: span, gauge, height and working level can be flexibly adjusted according to working conditions.

Application Scenario

Mechanical processing and equipment assembly workshop
Lifting and stacking of steel structure components
Electric power and transformer assembly plant
Production lines arranged semi-outdoor or against the wall
Storage and loading and unloading areas, especially areas without integral overhead crane structures

Product display pictures

Packing and delivery

Secure and Professional Packaging
To ensure product safety during international transportation, each item is carefully packed using high-strength wooden cases, moisture-proof films, and reinforced fasteners. All goods are securely fixed to prevent movement or damage during shipping. Our team follows strict export packing standards and performs final inspections before container loading, ensuring every shipment arrives in perfect condition.
